GP FGG Series
GP25 FGG

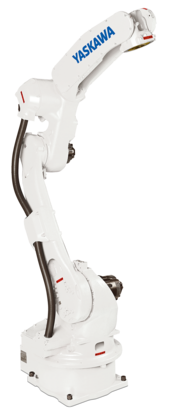

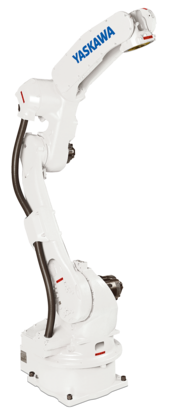

The GP25 FGG is a 6-axis industrial robot with a 25kg payload and a maximum reach of 1,703 mm, with specifications suited for certain food related applications.
Overview
The GP25 FGG is a highly versatile 6-axis robot with a 25 kg payload, 1730 mm reach and outstanding repeatability of +/- 0.02 mm. Specifications like high IP65/67 (dust/liquid proof) protection rating, food-grade grease lubrication in all joints, and a special drip-proof coating allows the robot to be used in certain food-related applications.
You will achieve high transfer rates with this extremely fast and efficient GP25 FGG robot, which offers a perfectly tuned payload/speed/wrist allowable moment in its class. Designed with the latest YASKAWA Sigma7-Servo Motor Generation, the GP25 FGG offers improved acceleration/deceleration control. The small footprint and slim arm design allows for minimum installation space and minimize interference with peripheral devices. Installation is quick and efficient - media cables are guided through the hollow arm and wrist structure.
Technical Details
- Number of Axis
- 6
- Payload
- 25 kg
- Max Working Range
- 1730 mm
- Repeatability
- 0.02 mm
- Weight
- 265 kg
- Power Supply
- 2 kVA
- Maximum Speed S Axis
- 210 °/s
- Maximum Speed L Axis
- 210 °/s
- Maximum Speed U Axis
- 265 °/s
- Maximum Speed R Axis
- 420 °/s
- Maximum Speed B Axis
- 420 °/s
- Maximum Speed T Axis
- 885 °/s
- Mounting Options
- x No
- Further Specifications
- x No
Downloads
| Name | |||
|
Brochure Robots GP-FGG-Series
Handling & General Application for the Food Industry Brochures | English |
Brochures | English | |
|
Flyer Robots GP-FGG-Serie
Handling & Allgemeine Applikationen für den Lebensmittelbereich Brochures | German |
Brochures | German | |
| GP25 FGG 2D CAD/CAE | | CAD/CAE | ||
| GP25 FGG 3D CAD/CAE | | CAD/CAE |
