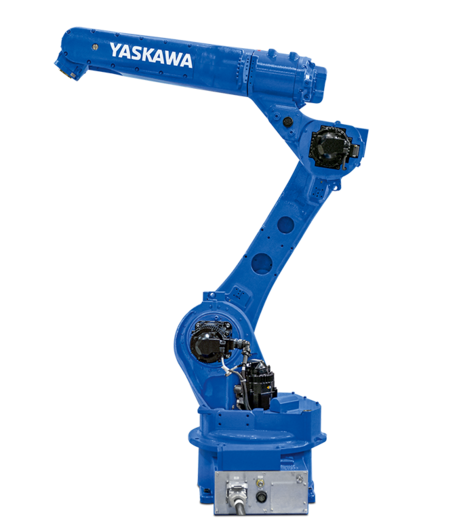

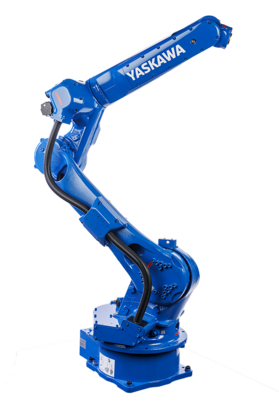

The Motoman GP series is a portfolio of multi-purpose, 6-axis industrial robots with payloads that range between 4 kg to 600 kg.
Overview
The Motoman GP series is a portfolio of multi-purpose, 6-axis industrial robots in a payload range between 4 to 600 kg.
A wide variety of payload/reach combinations, including versions with high IP protection rates, food-grade grease or special purpose paint finishes, makes those GP Series robot models perfect candidates for many kinds of automation challenges, such as assembly, material handling, machine tending, material removal or quality inspection.
Technical Details
- Number of Axis
- 6
- Payload
- 20 kg
- Max Working Range
- 1802 mm
- Repeatability
- 0.02 mm
- Weight
- 250 kg
- Power Supply
- 2 kVA
- Maximum Speed S Axis
- 210 °/s
- Maximum Speed L Axis
- 210 °/s
- Maximum Speed U Axis
- 265 °/s
- Maximum Speed R Axis
- 420 °/s
- Maximum Speed B Axis
- 420 °/s
- Maximum Speed T Axis
- 720 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
