Yaskawa Motoman GP Series Robots: Handling & Mounting
GP50

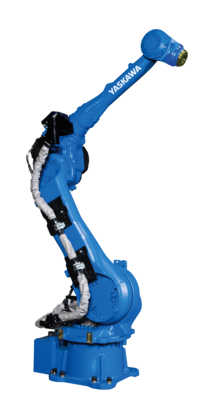

The MOTOMAN GP50 is a highly versatile 6-axis industrial robot has a payload of 50 kg and a maximum reach of 2,051 mm, perfect for a wide range of applications.
Overview
The MOTOMAN GP50 is a highly versatile 6-axis industrial robot with 50 kg payload, 2.051 mm reach, and an outstanding repeatability of +/- 0.03 mm.
The GP50 robot is offering a perfectly tuned payload/speed/wrist allowable moment combination, for impressive speed and acceleration performance. The small footprint, slim arm design allows for minimum installation space and minimize interference with peripheral devices.
A version with high IP65/67 (dust & liquid protection) is available, for operation in harsh environments.

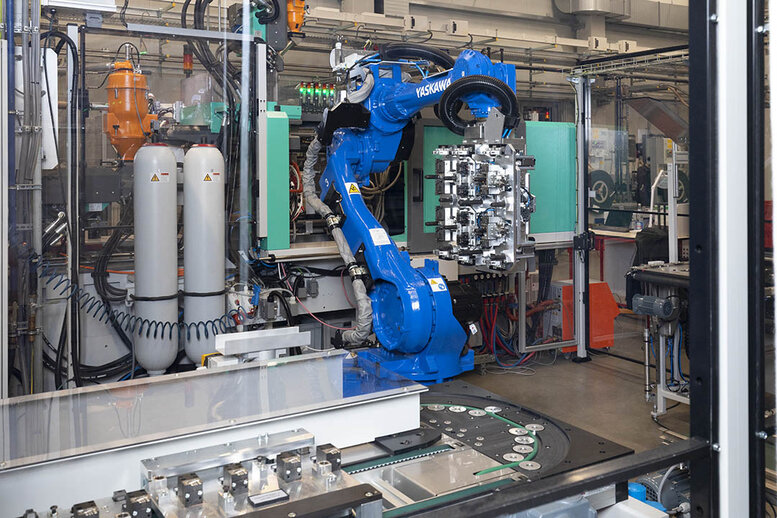

The GP50 is perfect for a wide range of applications, including machine tending, material handling, material removal, assembly, additive manufacturing, dispensing and grinding/polishing.
- Increased Productivity: Automate repetitive tasks for faster throughput and higher efficiency.
- Enhanced Precision: Achieve consistent and accurate performance for improved product quality.
- Improved Safety: Reduce workplace hazards by automating dangerous or strenuous jobs.
- Maximum Flexibility: Adapt to changing production needs with versatile payload and reach options.
Technical Details
- Number of Axis
- 6
- Payload
- 50 kg
- Max Working Range
- 2061 mm
- Repeatability
- 0.03 mm
- Weight
- 570 kg
- Power Supply
- 4 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 187 °/s
- Maximum Speed U Axis
- 187 °/s
- Maximum Speed R Axis
- 250 °/s
- Maximum Speed B Axis
- 250 °/s
- Maximum Speed T Axis
- 360 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
