MPX Series

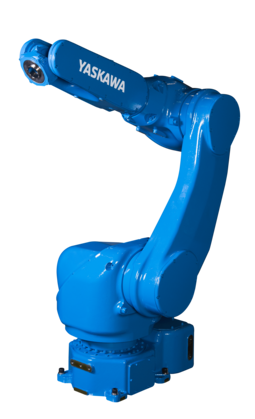

MPX1950
Medium Size Painting Robot
Overview
The MOTOMAN MPX1950 painting robot provides a payload of 7 kg, which enables mounting of a wide variety of guns and bells on this medium-sized robot. The smooth arm design with a large hollow diameter is optimal for tubing and can prevent interferences among paint and air tubes. On the U-Axis and L-Arm , additional paint equipment with a weight up to 3 kg an be attached.
Using the leakage compensation method to achieve positive pressure inside the enclosure, less air during operation is required, compared to the conventional air flow method. The MOTOMAN MPX1950 can be mounted on the floor, wall or ceiling and has two selectable access points for power cables. The S/L axis is designed with no offset to enable the effective use of the area under the arm and closer installation to a work piece.
Technical Details
- Number of Axis
- 6
- Payload
- 7 kg
- Max Working Range
- 1450 mm
- Repeatability
- 0.15 mm
- Weight
- 265 kg
- Power Supply
- 2.5 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 180 °/s
- Maximum Speed U Axis
- 180 °/s
- Maximum Speed R Axis
- 360 °/s
- Maximum Speed B Axis
- 400 °/s
- Maximum Speed T Axis
- 500 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
Downloads
| Name | |||
|
Flyer Robot MPX1950
Compact robot for flexible painting Data sheet | English |
Data sheet | English | |
|
Flyer Robot MPX1950
Kompakter Roboter für flexibles Lackieren Data sheet | German |
Data sheet | German | |
| MPX1950 2D CAD/CAE | | CAD/CAE | ||
| MPX1950 3D CAD/CAE | | CAD/CAE |
