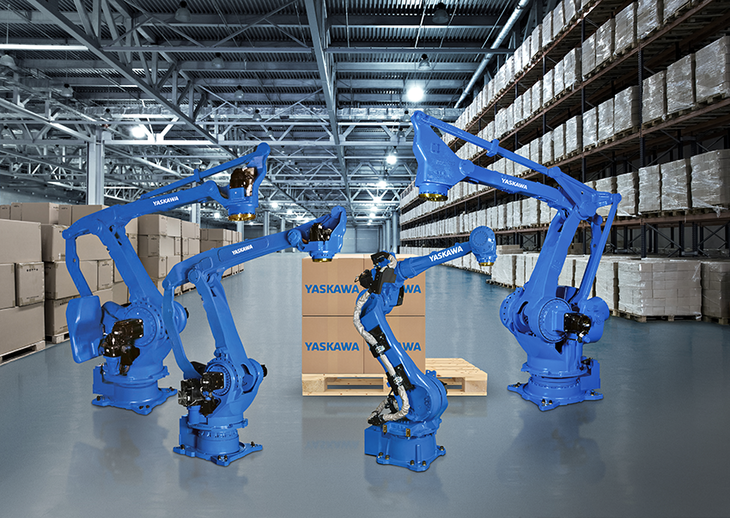

PL Series
PL190

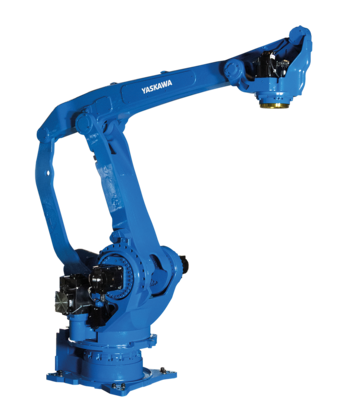

Part of the PL Series, the PL190 is a 4-axis robot with a maximum payload of 190 kg and a maximum working range of 3 159 mm.
Overview
With over 1700 cycles per hour, the fast and powerful 4-axis MOTOMAN PL190 robot offers top performance for box, carton and bag palletizing for end-of-line packaging and logistics applications.
The optimized kinematic structure of this robot provides even better stability and higher max. payload capacity of 190 kg compared to the predecessor model.
The superior working range with a maximum reach of 3,159 mm and an achievable stacking height of over 2,600 mm is perfect for all kinds of palletizing tasks.
Technical Details
- Number of Axis
- 4
- Payload
- 190 kg
- Max Working Range
- 3159 mm
- Repeatability
- 0.05 mm
- Weight
- 1680 kg
- Power Supply
- 9.5 kVA
- Maximum Speed S Axis
- 140 °/s
- Maximum Speed L Axis
- 145 °/s
- Maximum Speed U Axis
- 145 °/s
- Maximum Speed T Axis
- 420 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
Downloads
| Name | |||
|
Flyer Robot PL190
Palletizing & Handling with the PL-series Data sheet | English |
Data sheet | English | |
|
Flyer Robot PL190
Palettieren & Handling mit der PL-Serie Data sheet | German |
Data sheet | German | |
| PL190_2D CAD/CAE | | CAD/CAE | ||
| PL190_3D CAD/CAE | | CAD/CAE |
