MPP Series

MPP3H

High Speed 4-axis Delta Robot with 3kg payload

Overview

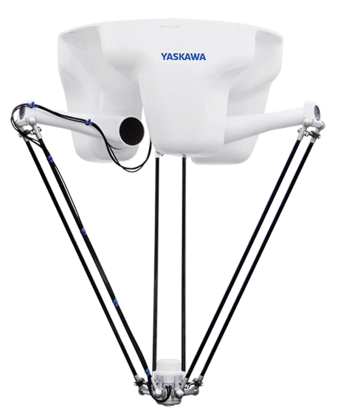

The MOTOMAN MPP3H is a Delta robot with a maximum payload of 3 kg and a recommended range of motion (Ø 1040 x H 300 mm). Strongly depending on the payload and the motion pattern, the MPP3H can achieve speeds between 2 to 4 cycles per second.

The MPP3H is ISO Cleanroom Class 5 certified and IP67 protected (dust and liquid proof).

MPP3H robots are perfect for pick&place applications in Food, Life Sciences, Medical.

Technical Details

  • Number of Axis
  • 4
  • Payload
  • 3 kg
  • Max Working Range
  • 1300 mm
  • Repeatability
  • 0.1 mm
  • Weight
  • 115 kg
  • Power Supply
  • 1.5 kVA
  • Maximum Speed S Axis
  • x No
  • Maximum Speed L Axis
  • x No
  • Maximum Speed U Axis
  • x No
  • Maximum Speed R Axis
  • x No
  • Maximum Speed B Axis
  • x No
  • Maximum Speed T Axis
  • x No
  • Mounting Options
  • Ceiling
  • Further Specifications
  • x No
Processing... Enter name, description, product or keywords Showing _START_ – _END_ / _TOTAL_ records filtered from _MAX_ records No records No records First Last Sort ascending Sort descending

Downloads

Name
Flyer Robot MPP3H
Flyer, datasheet, brochure robot, MPP3H Data sheet | English
Data sheet English
Flyer Robot MPP3H
Flyer, Datenblatt, Prospekt, Roboter MPP3H Data sheet | German
Data sheet German
MPP3H_2D CAD/CAE | CAD/CAE
MPP3H_3D CAD/CAE | CAD/CAE
