HC Series
HC10DTP
Powerful cobot for simple industrial applications in harsh environments.
Overview

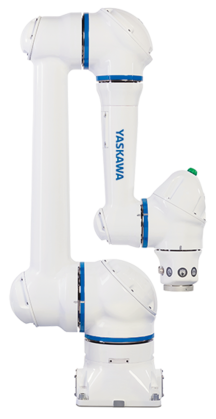

The MOTOMAN HC10DTP is a human-collaborative robot with a payload of 10 kg. It provides an absolute reach (S/L-Axis center of rotation to R/T-Axis center of rotation) of 1,379 mm and an effective reach (S/L-Axis center of rotation to Point P of) of 1,200 mm.
Specifications like high IP67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints, and a a special drip proof coating allows the robot to be used in certain food related applications.
Further applications are collaborative, simple assistance tasks in handling and assembly, palletizing, loading/unloading of machine tools or quality inspection.
The MOTOMAN HC10DTP can be operated and programmed using hand guiding, standard teach pendant or the intuitive Smart Pendant. For particularly efficient programming via hand guiding, it has Direct Teach buttons on the wrist that can be used to accept taught positions immediately without having to confirm them on the teach pendant. This reduces programming times and makes it suitable for both professional system integrators and newbies. Many safety functions, e.g. automatic retraction from a clamping situation, or simply pushing the robot away with resumption of movement, distinguish it as a professional collaborative robot.
The MOTOMAN HC10DTP is switchable between safely monitored operation and full power and speed, with this mixed operation (hybrid robot) it achieves very good cycle times. Media cables for the supply of grippers or tools are pre-routed in the arm and are led out at the wrist, so that in many cases bulky external cable packages are not required.
Technical Details
- Number of Axis
- 6
- Payload
- 10 kg
- Max Working Range
- 1379 mm
- Repeatability
- 0.05 mm
- Weight
- 58 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 130 °/s
- Maximum Speed L Axis
- 130 °/s
- Maximum Speed U Axis
- 180 °/s
- Maximum Speed R Axis
- 180 °/s
- Maximum Speed B Axis
- 250 °/s
- Maximum Speed T Axis
- 250 °/s
- Mounting Options
- x No
- Further Specifications
- x No
